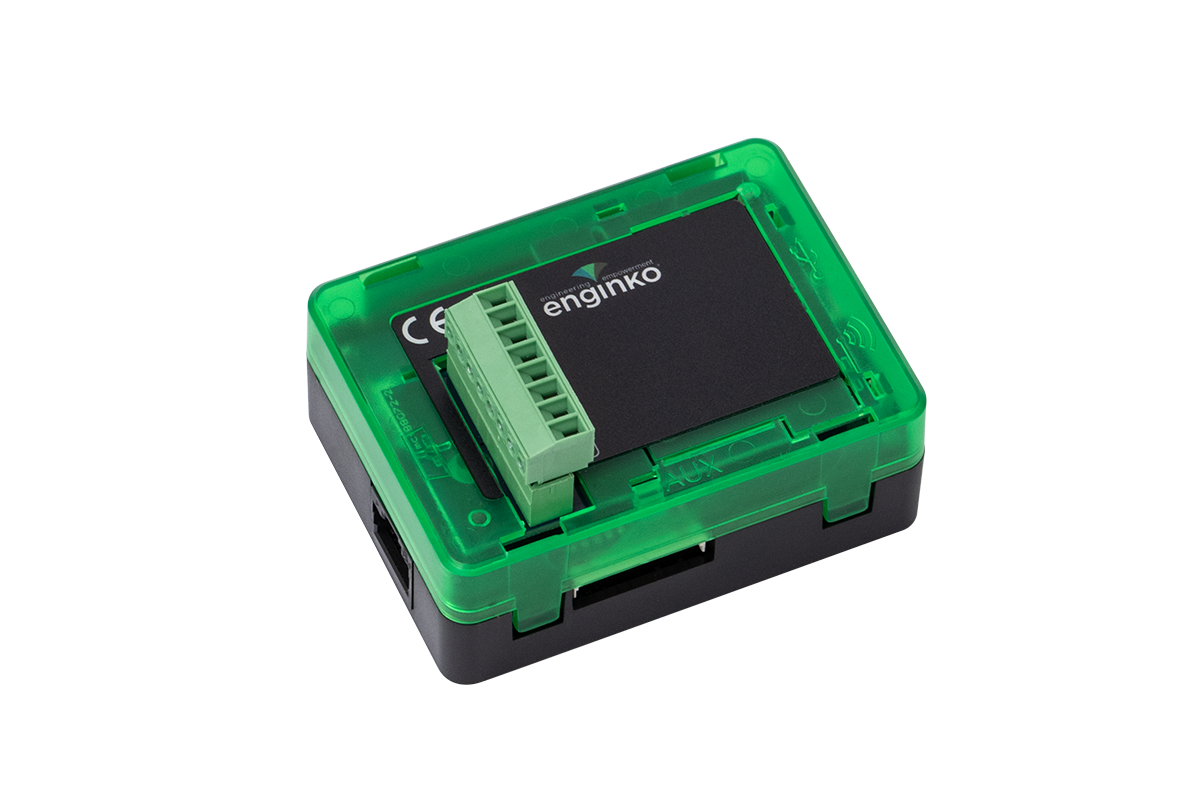

4 Channel LoRaWAN Interface
4 Channel LoRaWAN Interface
Product Description
Product Description
This LoRaWAN interface has multiple input channels and is useful to connect any kind of analog sensor. There are 3 options for the input channels -
- 4 x (4-20mA) opto isolated input channels
- 2 x 4-20mA and 2 x 0-10V input channels
- 4 x (0-10V) opto isolated input channels
Technical Specifications
Technical Specifications
• CPU Cortex M4
• RTC
• EEProm 32KB
• Flash 1MB
• Encryption AES 128 bit
• LiPo rechargeable battery
• Class C LoRaWAN® stack EU868, AS923, AU915, US915 @868MHz
• 1000Vdc isolated analog inputs, 4 analog current inputs 4-20mA 12bits with disconnect alarm
• USB On The Go
• IoT node setup ad firmware upgrade via USB interface
• Power supply 10-36Vdc
• Storage temperature range -20 + 80 °C, Working temperature range -10 + 70 °C
• Dimensions L x H X P: 81 x 60 x 50mm
Contact shop@thethingsindustries.com for information regarding datasheet and for custom order.
