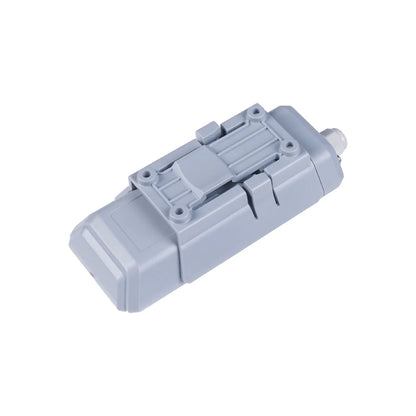

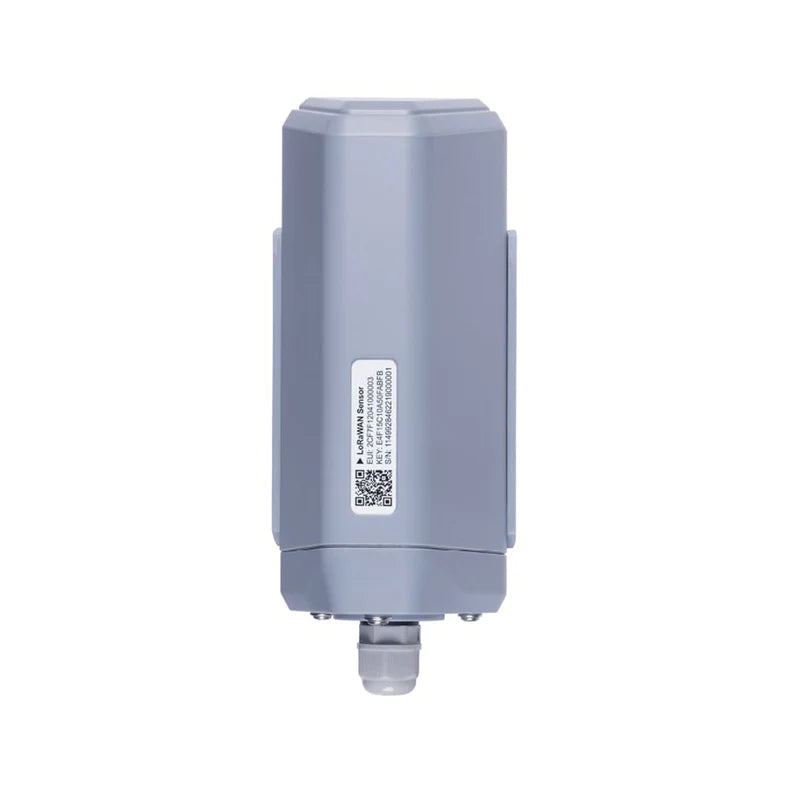

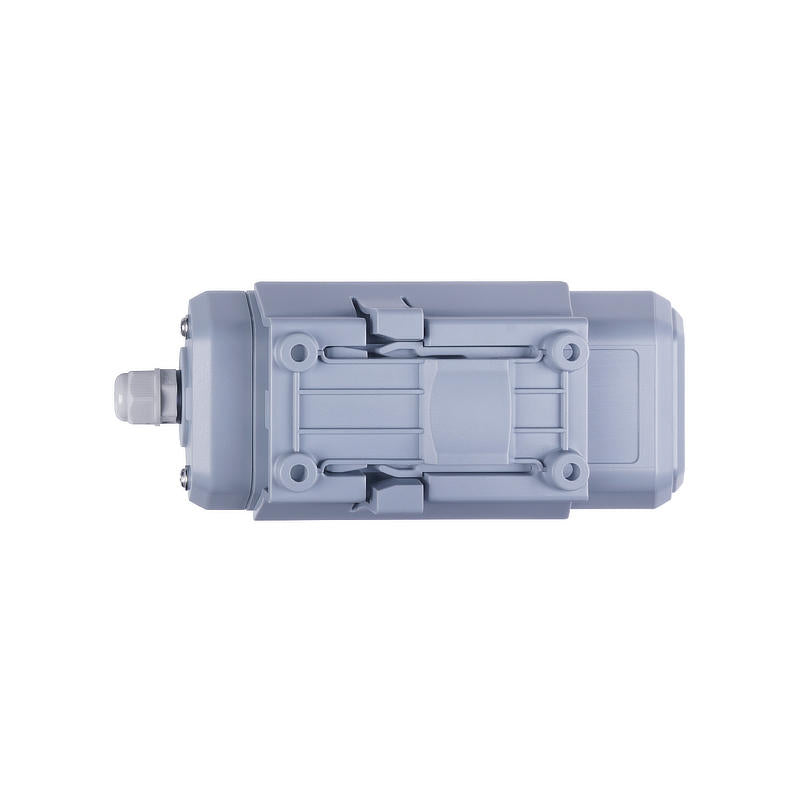

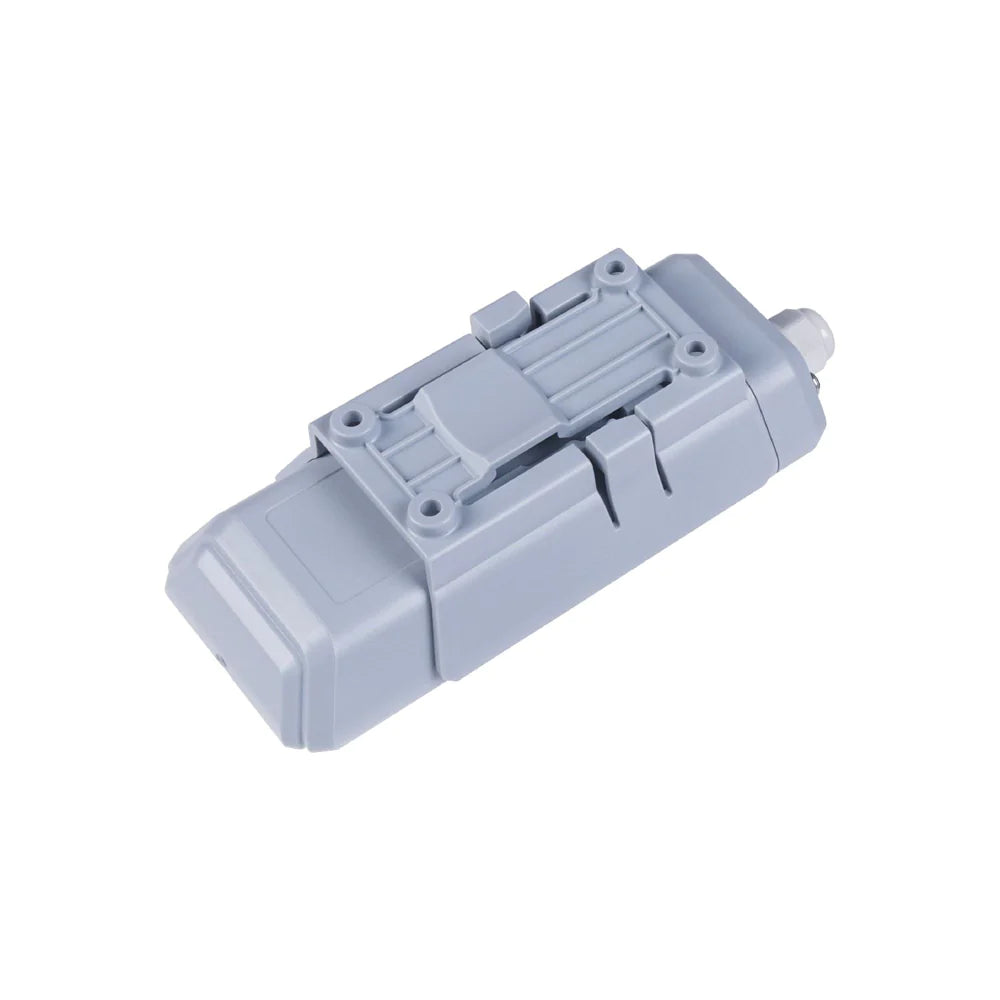

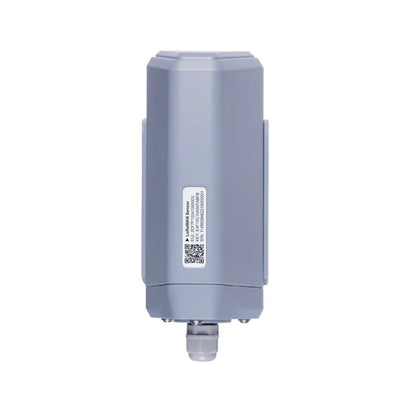

Data Logger

A battery-powered LoRaWAN data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth, IP66, and app service for configuration and remote device management.

The device features stability and reliability and can cover a long transmission range while keeping ultra-low power consumption, ideal for outdoor use.

It can be battery-powered or connected to a 12V external power supply. When the 12V power supply is connected, the replaceable built-in battery is set to be used as the backup power supply.

Features

• Strong Compatibility with different Sensors: supports all MODBUS-RTU RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors.

• Compatible with LoRaWAN® V1.0.3, available in all major global channel plans.

• Long Range & replaceable Battery powered: With LoRaWAN® wireless transmission, it supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes.

• Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.

• Remote configuration and management: allows users to remotely manage data and configure.


Support Industrial Sensors of Different Interfaces

• RS485: Support standard RS485 Modbus-RTU protocol
• Analog: 2 x 0~10V or 2 x 4~20mA.

• GPIO: 1 x GPIO, collect level or pulse signal


It comes with a single-channel collector, and only supports one of the following protocols at one time.

Datasheet - link
