16A Switch & Power Meter LoRaWAN

16A Switch & Power Meter LoRaWAN

Regular price €40,00 EUR
Regular price Sale price €40,00 EUR
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

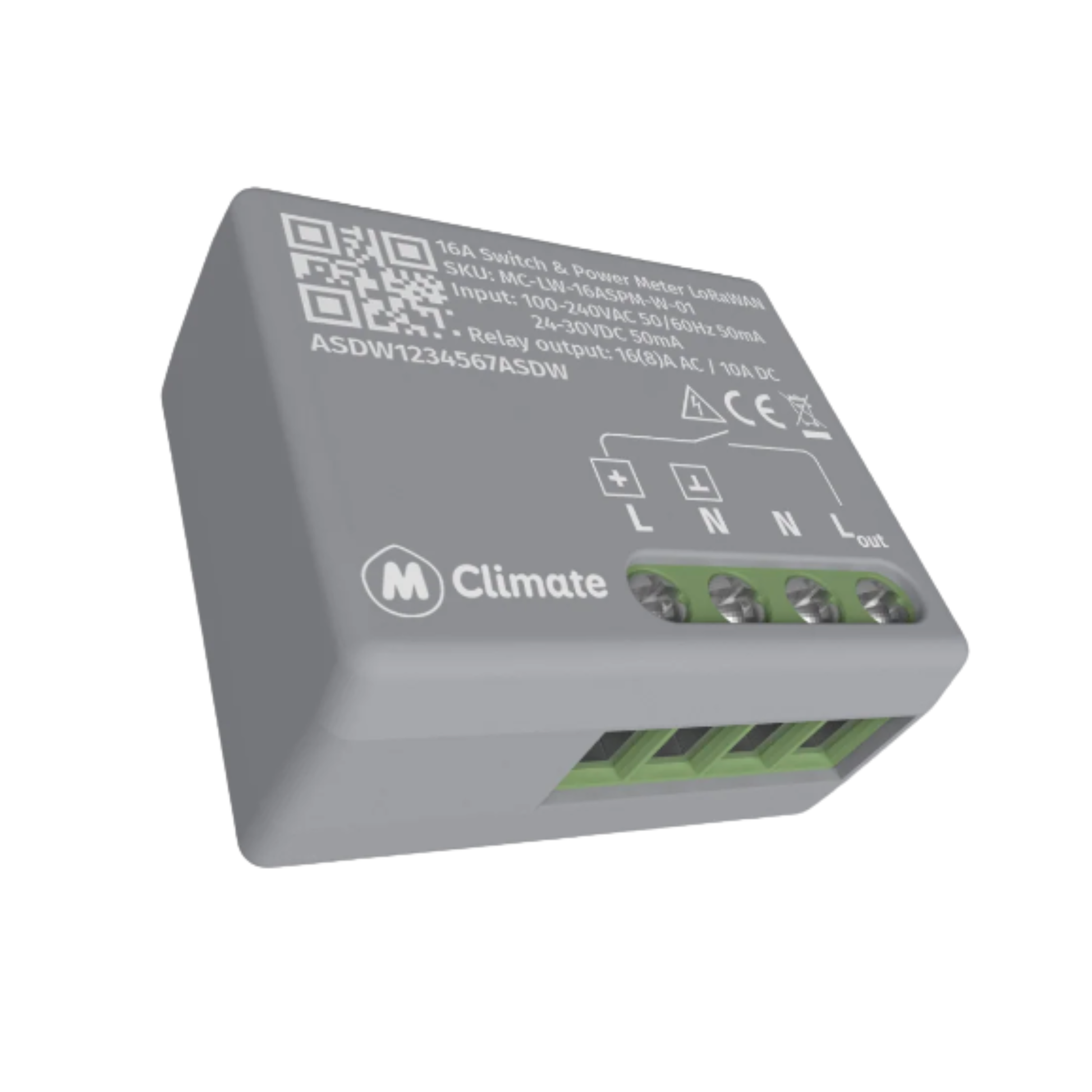

The MClimate 16A Switch & Power Meter LoRaWAN® is a compact relay and electricity meter that fits behind most wall switches. It automates, monitors, and controls appliances with overheating protection, LoRaWAN Class C, and FUOTA for easy retrofitting.

Verticals:

  • Smart Buildings
  • Residential
  • Commercial Facilities
  • Energy Management

Minimum order: 4

Technical Specifications

• Power Supply:** 100–240 VAC / 24–30 VDC
• Size & Weight:** 32 × 36 × 18 mm, 24.5 g
• Enclosure:** PC UL-94 V0
• Max Switching Current:** 16 A AC (8 A @ cosφ = 0.4) / 10 A DC
• Max Switching Power:** 3840 W AC (2000 W @ cosφ = 0.4) / 300 W DC
• Power Measurement:** Yes
• Protections:** Over-voltage, over-current, over-power, over-heating
• Wireless Technology:** LoRaWAN® 1.0.3
• Wireless Security:** LoRaWAN® end-to-end encryption (AES-CTR)
• Device Type:** LoRaWAN® Class C end-device
• Supported Features:** OTAA, ADR, adaptive channel setup
• Supported Regions:** EU863–870 (others available upon request)
• Link Budget:** 130 dB
• RF Transmit Power:** 14 dB

View full details
