Generic Node Sensor Edition
Generic Node Sensor Edition
Product Description
Product Description
One LoRaWAN® node, endless use cases.
- End-to-End Encryption
- Firmware Over The Air Update
- Ultra Low Power
- Standard Replaceable AA Battery
- Open Development Tools
- LoRaWAN Operator Agnostic
- Open design (source-available)
Limited stock available! Shipping to commence in early September 2022.
Getting started documentation can be found here.

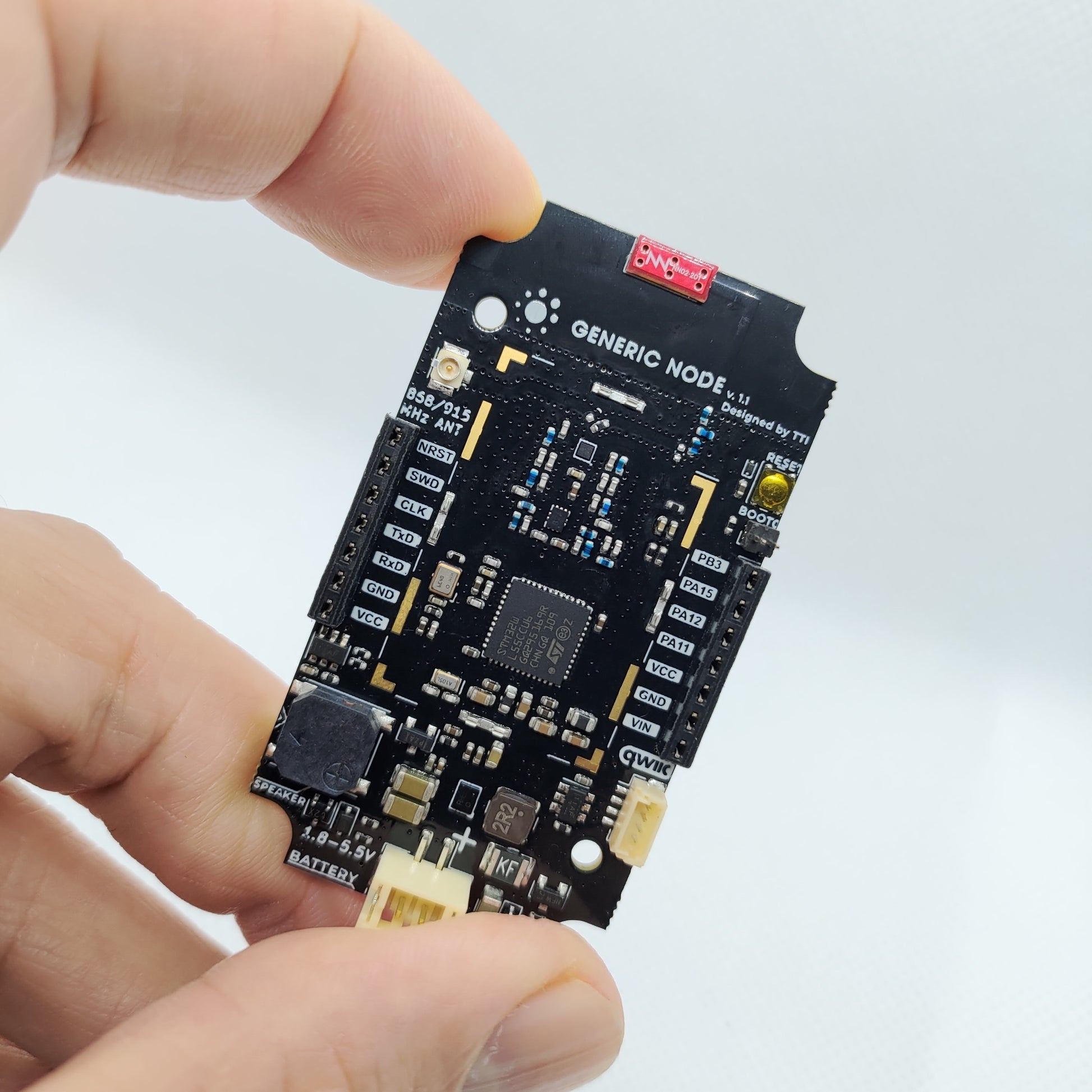

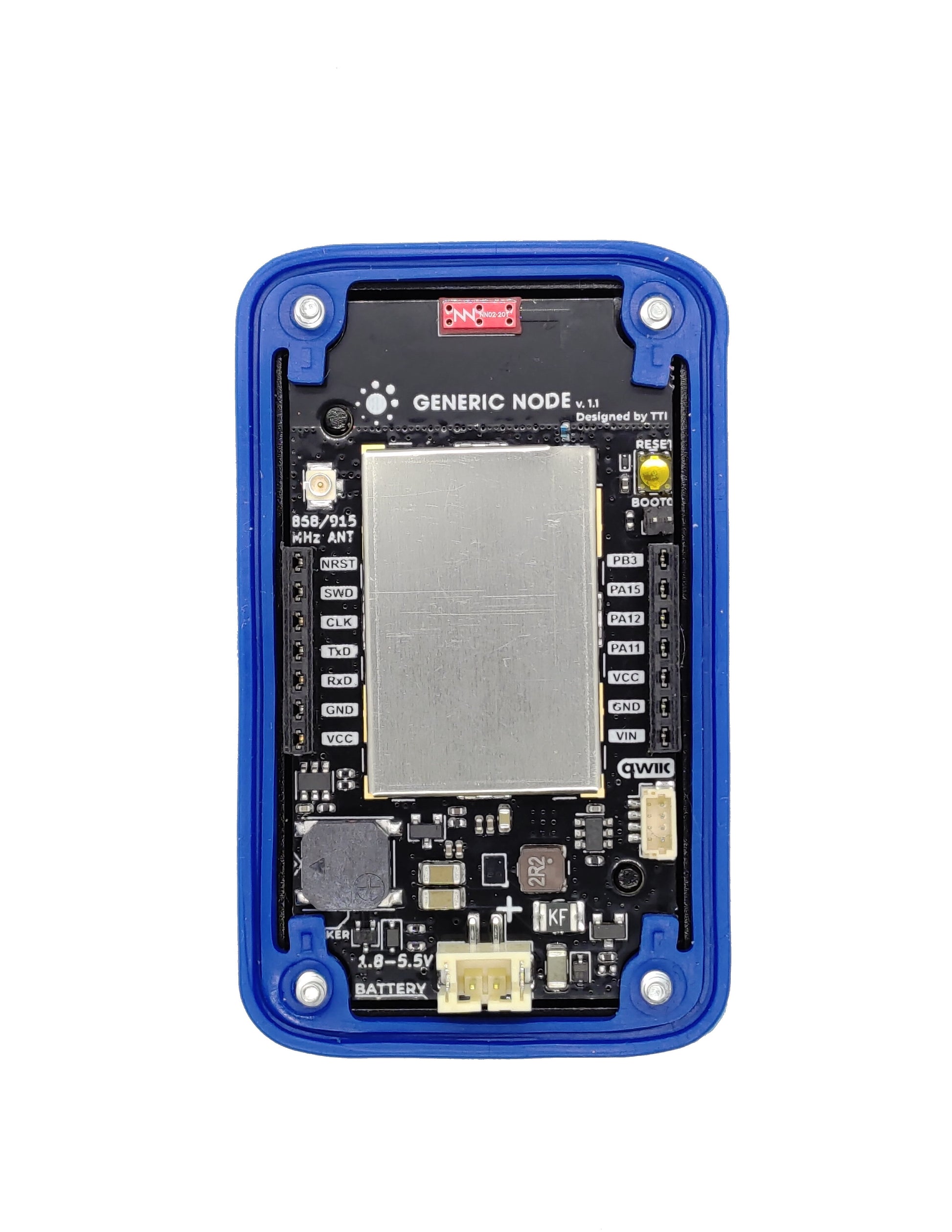

Technical Specifications
Technical Specifications
• STM32WL55CCU6 dual-core Arm Cortex®-M4/M0+ @48 MHz
• 256 Kbytes of Flash & 64 Kbytes of SRAM
• SX126x sub-GHz radio
• Power output up to +14dBm (EU868),+22.00 dBm (US915)
• LoRa, (G)FSK, (G)MSK, BPSK modulations
• 868 MHz & 915 MHz dual-band operation
• Powered with standard 2xAA alkaline batteries (*not included) with wide input voltage range (2.2V - 5.5V) for other battery chemistries
• Ultra-low power operation: ~1.8 μA in sleep mode w/ RTC
• ATECC608A-TNGLORA pre-provisioned LoRaWAN secure element
• LIS2DH12 - ULP 3-axis accelerometer
• SHTC3 humidity and temperature sensor
• MX25R1635 16Mb SPI NOR Flash for FUOTA and data-logging
• A user button, an RGB LED, a buzzer and a user-friendly expansion and programming options.
Couldn't load pickup availability
FAQs
Datasheet & Bulk Orders
Contact shop@thethingsindustries.com for datasheet information or custom orders.
Shipping Info
To keep things simple, we offer 2 shipping options -
- Europe & UK - €25 per package
- Rest of the world - €50 per package
Q. How long do I have to wait to get my order delivered?
A. We take 2-3 days to process your order and once the hardware is in the hands of the shipping carrier, we provide you with the tracking id.
Q. How do you calculate VAT?
A. As a Dutch registered company, we have to charge VAT for all the orders that go through the shop in EU. Here's how it works in a nut shell -
- Individual / Private use - Add 21% on the order amount
- Businesses in EU - provide your VAT number for reverse charge
- Rest of the World - VAT exempt i.e. not applicable
Q. I want my hardware to be pre-configured, can you assist with that?
A. We are working on offering this service directly via the webshop. Though at the moment, this is not possible. Keep an eye out here for updates on this.
Q. How can I get in touch for a volume order?
A. Drop a line to hardware@thethingsindustires.com with your inquiry and we will get back to you.
Q. How can I update my address?
A. Change of address is possible as long as the order is in pre-processing phase i.e. it hasn't been sent to the shipping carrier. Reach out to hardware@thethingsindustries.com with your order number in the subject line and we can check for you.
