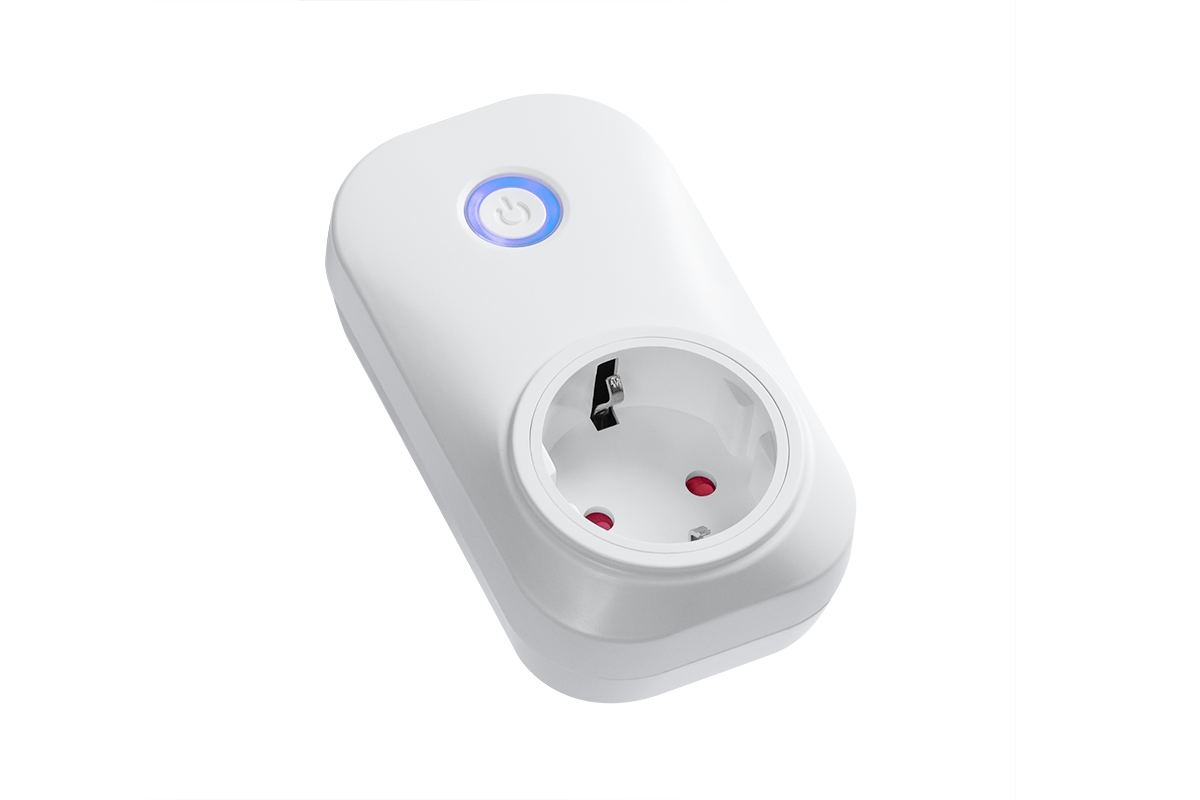

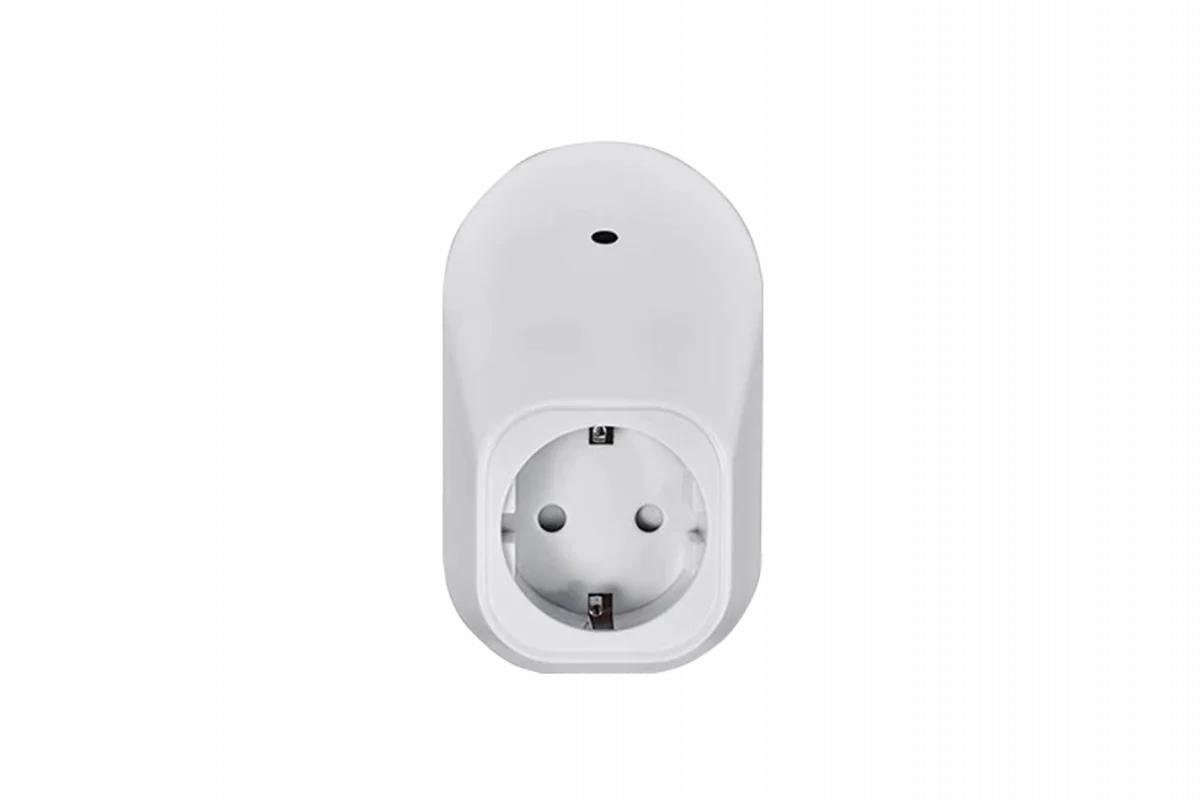

LoRaWAN Energy Meter plug
LoRaWAN Energy Meter plug
Product Description
Product Description
This compact LoRa energy meter can be used to monitor power consumption and load. Equipped with a rechargeable battery for power failure detection.
The Energy Meter plug can also be switched on or off remotely.
Applications -
- Energy metering
- Powerline quality measure
- Remote load control
- Mains blackout alarm
- Machinery maintenance
Contact shop@thethingsindustries.com for information regarding datasheet and for custom order.
Technical Specifications
Technical Specifications
• CPU ARM Cortex M4
• Class C LoRaWAN® 1.0.2 , EU868
• OTAA/ABP activation
• Metering and switch of a 230Vac – 16A Load (active, reactive and apparent energy, Class 0.2s)
• Error on energy measurement ±0.2% @100% load
• Configurable default power-on status
• Instantaneous reading of active, reactive and apparent power, voltage and current
• Power supply from line, 230Vac, 50Hz
Bicolor led (green, blue), for output and LoRaWAN® status
• Overload protection
• Rechargeable battery for powerline outage detection
• Embedded antenna
• Pushbotton for forcing transmission or re-join, ON/OFF (lockable),
• Time interval based or thresholds based uplink – Transmission @868 MHz, 14dBm max.
• BLE 5.0 interface for configuration, data reading and FW upgrade
• Remote configuration
• Storage temperature -10°C to +70°C, Working temperature -10°C to +60°C
• Dimensions: 110x62x35mm
• Protection grade: IP20
• Weight: 140g
Contact shop@thethingsindustries.com for information regarding datasheet and for custom order.
