Serial to LoRaWAN Interface
Serial to LoRaWAN Interface
Product Description
Product Description
This serial interface can be connected via serial port RS232 and send/receive data with LoRaWAN network. There are 2 version for this device -

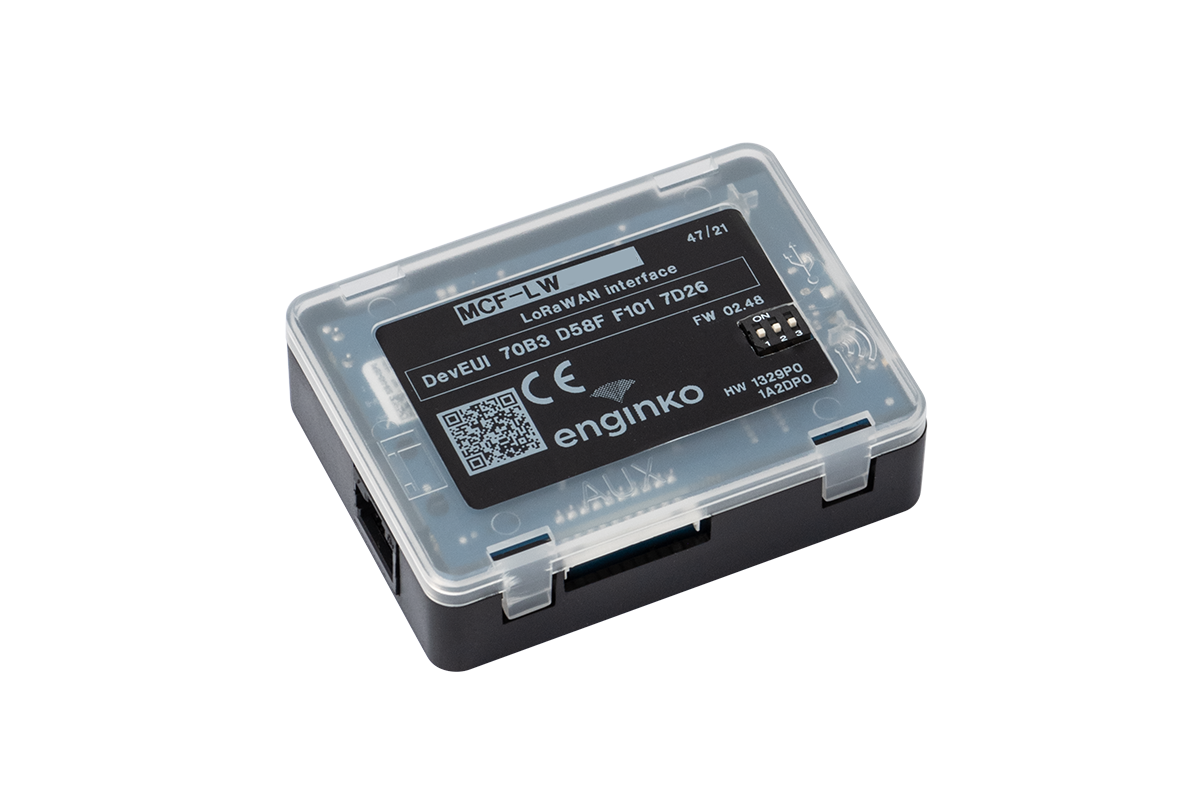

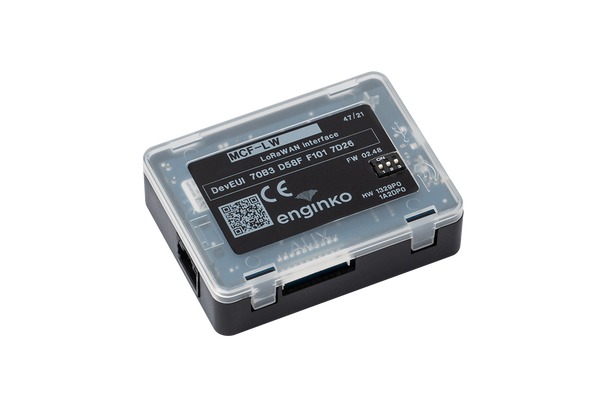

- Standard version

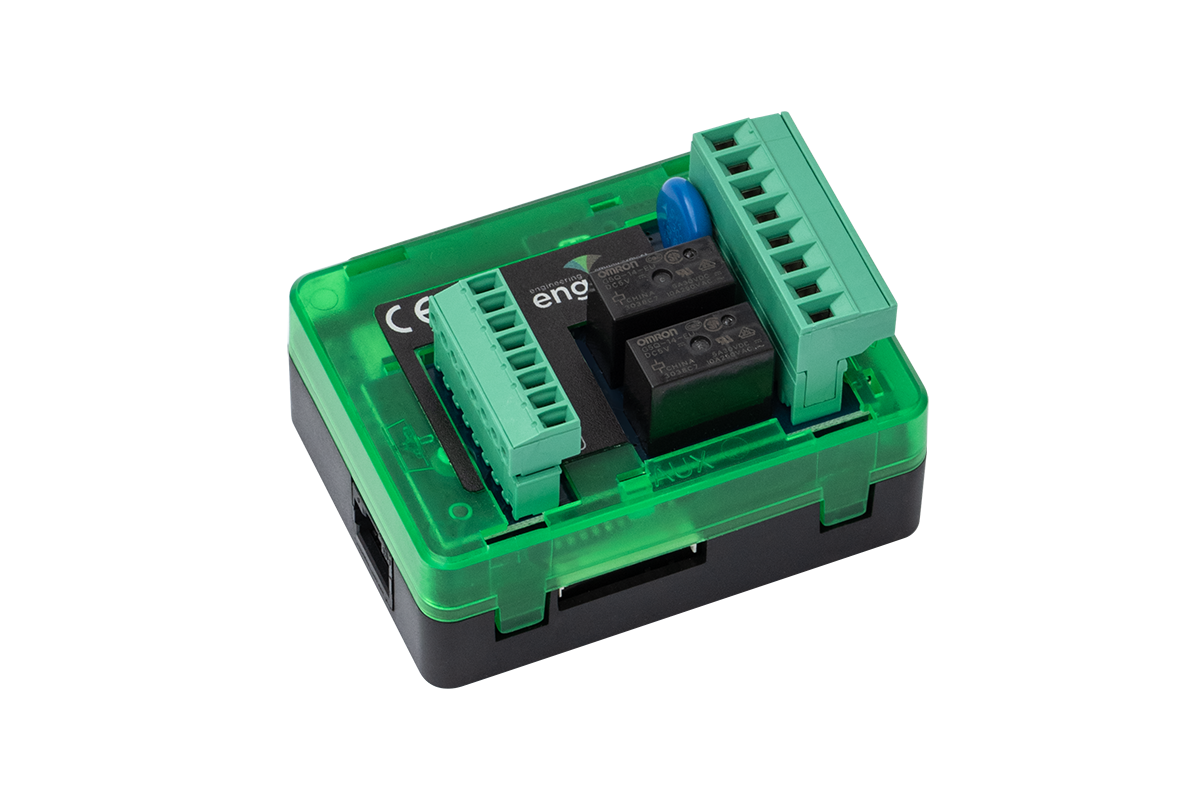

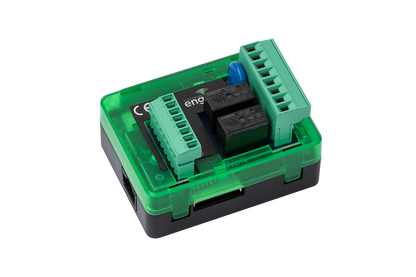

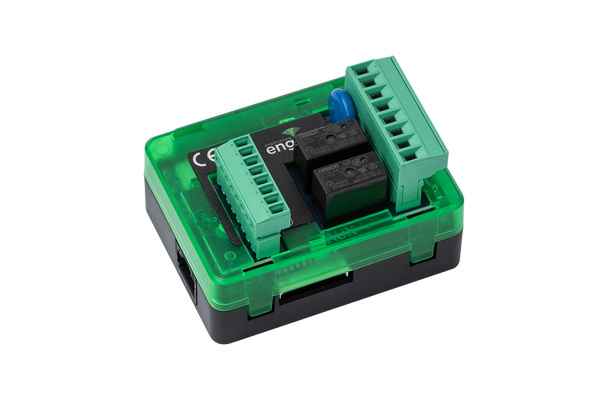

- With I/O options which consists of 5 opto isolated input (4 low voltage, one 230VAC) and relay outputs
Technical Specifications
Technical Specifications
• CPU Cortex M4
• RTC
• EEProm 32KB
• Flash 1MB
• Encryption AES 128 bit
• LiPo rechargeable battery
• Class C LoRaWAN® stack EU868, AS923, AU915, US915
• Serial interfaces: RS232
• USB On The Go
• IoT node setup ad firmware upgrade via USB interface
• 4 opto-isolated inputs working range 5-24Vac/dc, 1 opto-isolated input, capability 230V AC, 2 relay output with COM, NO, NC contacts carrying 5Amp@230V AC, Power supply 10-36V DC (only with I/O options)
• Storage temperature range -20 + 80 °C
• Working temperature range -10 + 70 °C
• Dimensions L x H X P: 81 x 60 x 24mm
Contact shop@thethingsindustries.com for information regarding datasheet and for custom order.
