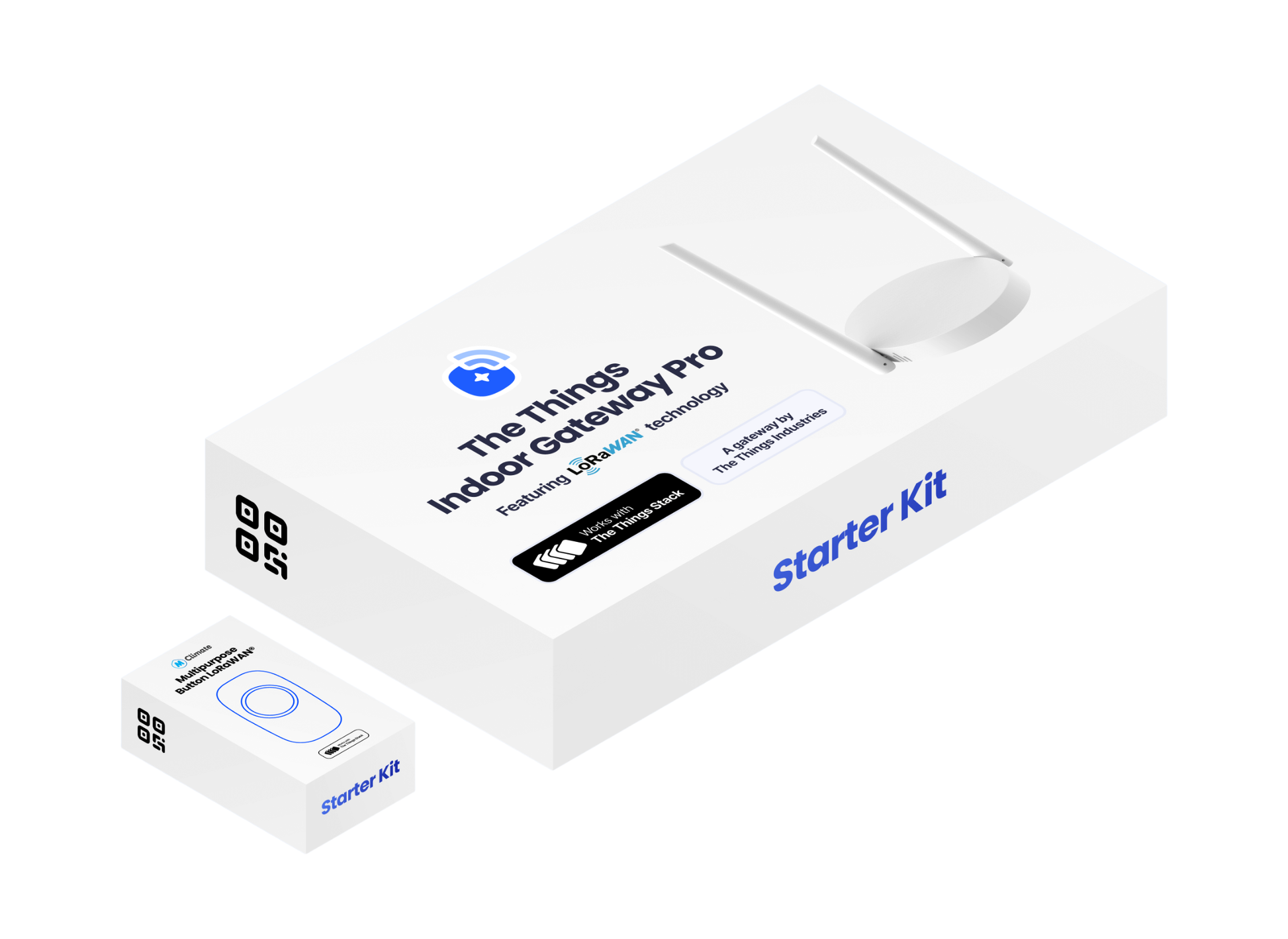

Starter Kit for LoRaWAN (EU868 Edition)
Starter Kit for LoRaWAN (EU868 Edition)
Product Description
Product Description
Get Started with LoRaWAN® in Minutes
This all-in-one kit combines enterprise-grade hardware with cloud-managed simplicity, perfect for developers, businesses, and IoT enthusiasts ready to explore the possibilities of LoRaWAN.
What's Included

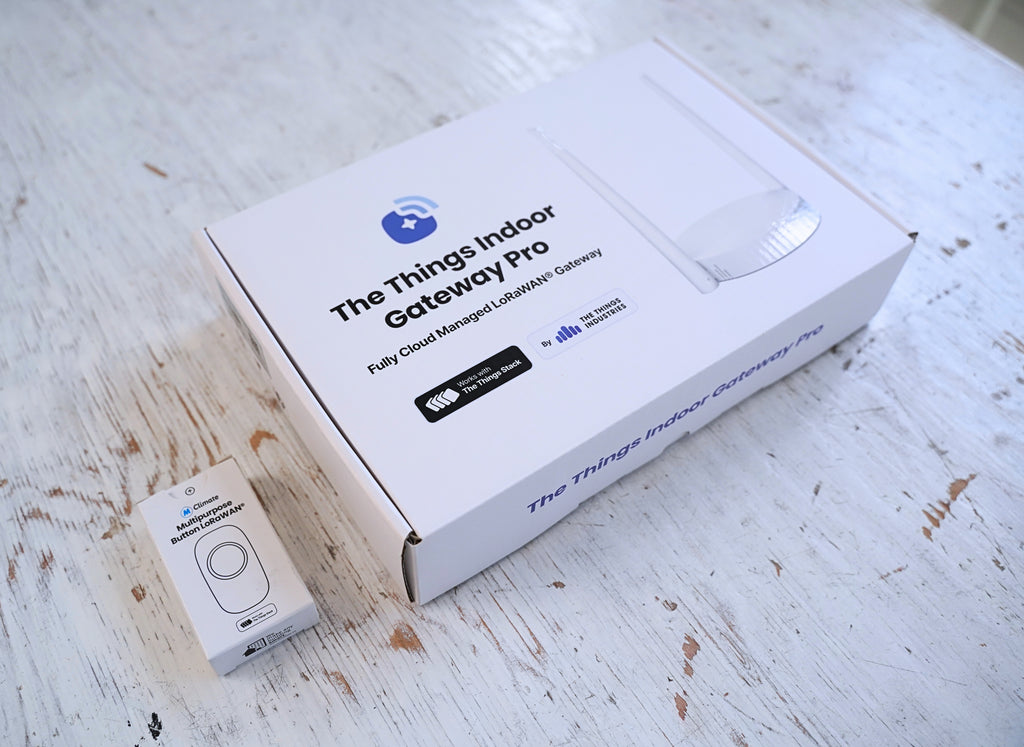

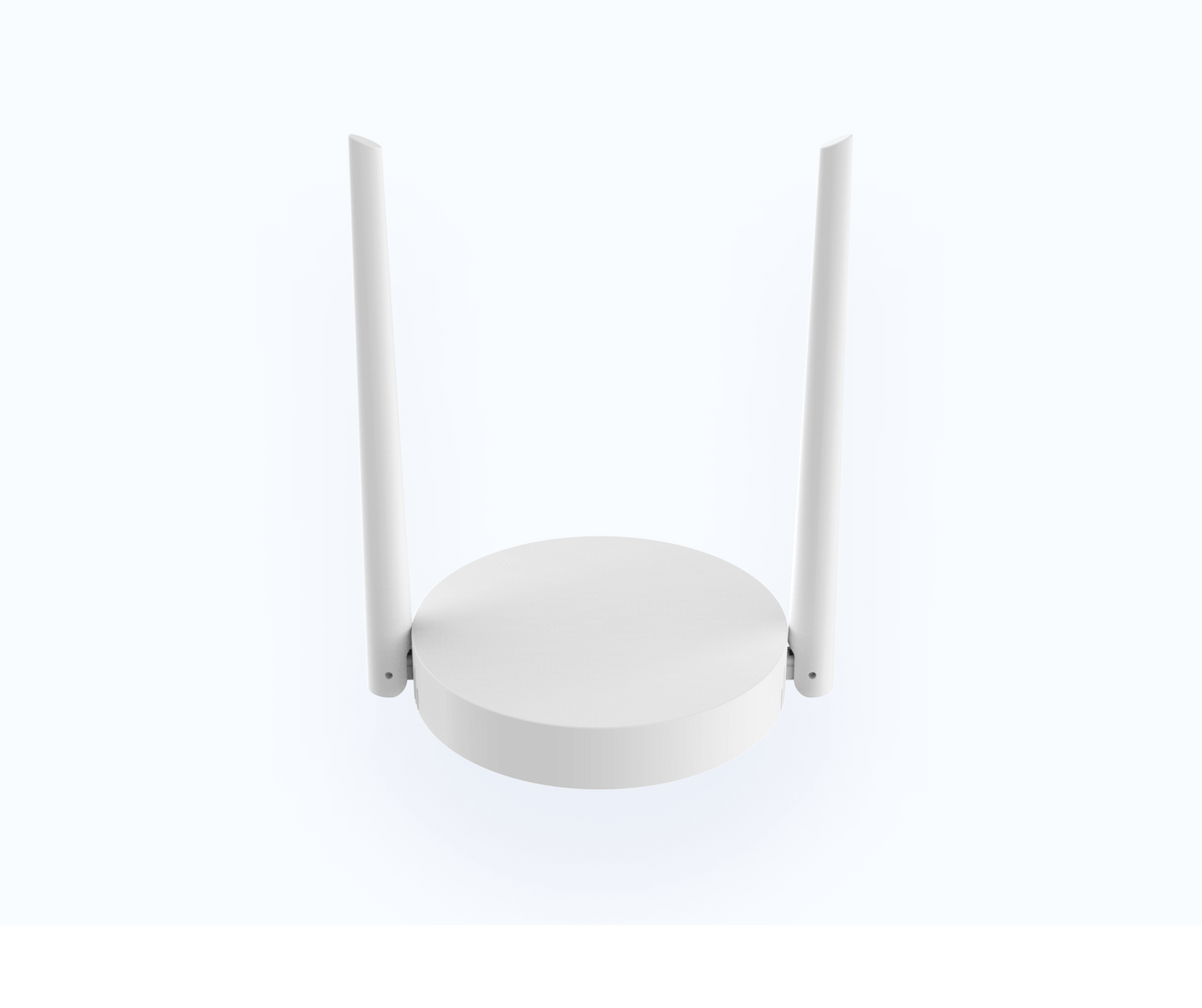

1. The Things Indoor Gateway Pro
- State-of-the-art 8-channel LoRaWAN gateway with true Zero-Touch Provisioning
- Triple connectivity options: Built-in 4G LTE SIM card, WiFi, and Ethernet
- Fully cloud-managed via The Things Stack - no complex setup required
- Instant activation: Pre-configured cellular data plan included
*This includes a 1 year subscription.

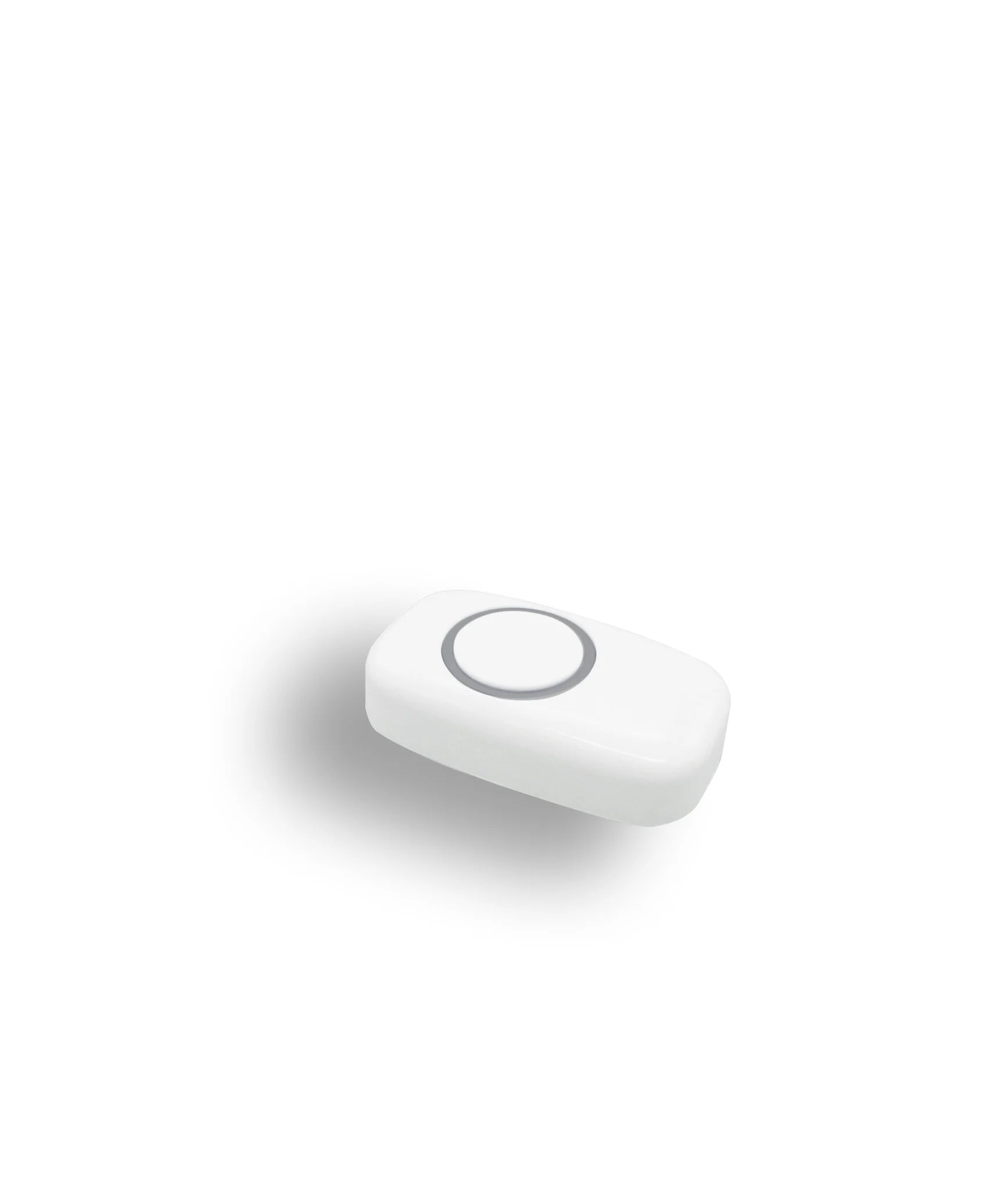

2. mClimate Multipurpose Button
- Versatile LoRaWAN end device supporting single, double, and triple click actions
- Built-in temperature sensor
- Ultra-low power consumption with long-lasting battery life
Why this product might be right for you?
🚀 Quick Setup: Get your LoRaWAN network running in under 10 minutes with a [step-by-step guide](https://www.thethingsindustries.com/docs/getting-started/3-try-starter-kit).
📶 Reliable Connectivity: Built-in cellular data ensures your gateway stays connected anywhere
🔧 Fully Cloud Managed: No complex configuration - everything is handled in the cloud
📊 Data Ready: Immediate integration with popular IoT platforms like Datacake for visualization
🌐 Scalable: Start with one device, expand to thousands using the same infrastructure
💡 Versatile Applications: Perfect for smart building automation, environmental monitoring, asset tracking, and custom IoT projects
This is perfect for
- IoT Developers prototyping LoRaWAN applications
- System Integrators demonstrating long-range connectivity solutions
- Businesses exploring IoT for operational efficiency
- Educational Institutions teaching wireless sensor networks
-
Makers & Hobbyists building smart home or environmental projects
Technical Specifications
Technical Specifications
The Things Indoor Gateway Pro
LoRa®
• Antenna Connector: 1 x External Antenna
• Concentrator: SX1302, 8 Channels (Half-duplex)
• Frequency Band: EU868 / US915
• Sensitivity: -140 dBm Sensitivity at SF12
• Output Power: Up to 27 dBm
Ethernet Interface
• Port: 1 x RJ45 WAN Port
• Physical Layer: 10/100 Base-T (IEEE 802.3)
• Data Rate: 10/100 Mbps (Auto-Sensing)
• Interface: Auto MDI/MDIX
• Mode: Full or Half Duplex (Auto-Sensing)
Wi-Fi
• Standards: IEEE 802.11 b/g/n, 2.4 GHz
Cellular Interface
• Network: 4G LTE (Cat 1 bis) / GSM
• Antenna: 1 x External Antenna
• SIM Slot: 1 (Micro SIM-3FF)
Others
• Button: 1 x Reset Button
• Console Port: 1 x USB 2.0 (Type-C) for Power Supply and Console
• LED Indicators: 1 x Controller, 1 x The Things Stack
Power Supply and Consumption
Power Input:
• 5V via USB Type-C Port
• 5~12V DC via 3.5mm 2-pin Terminal Block
---
mClimate Multipurpose Button
• Description: LoRaWAN Button with temperature sensor and 3 types of button presses (single, double, and triple press)
• Model: MC-LW-BTN-01
• Dimensions: 71 × 41 × 18 mm
• Weight: 26 g
• Frequency Range: 868–870 MHz
• Power Supply: 1 × ER10280 3VDC battery
• Sensors: Built-in temperature sensor
• Operating Temperature: -40°C to +85°C
• Material: ABS
• Installation: Indoor use
• Maximum Altitude: Up to 2000 m
• Ambient Temperature (Operating): 0°C to +50°C
• Maximum Relative Humidity: 80% for temperature up to 31°C, decreasing linearly to 25% at 50°C
• Contamination Degree: PD2
• Storage Temperature: -40°C to +85°C
• Storage Humidity: 5% to 90% without condensation
