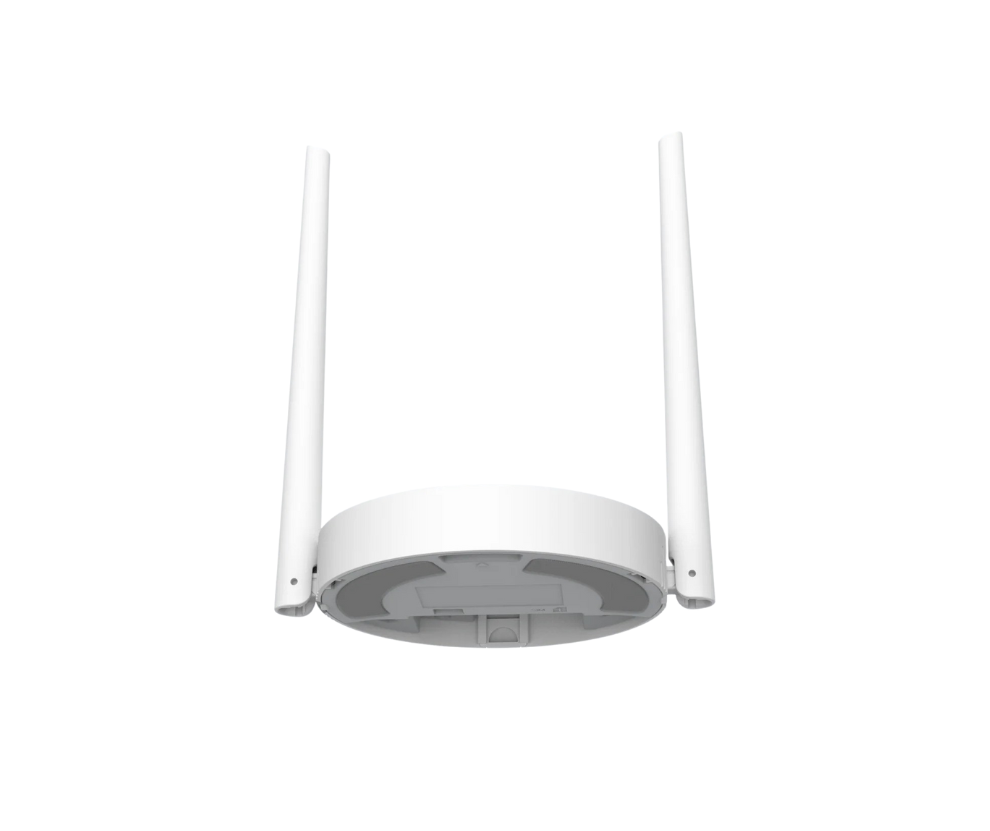

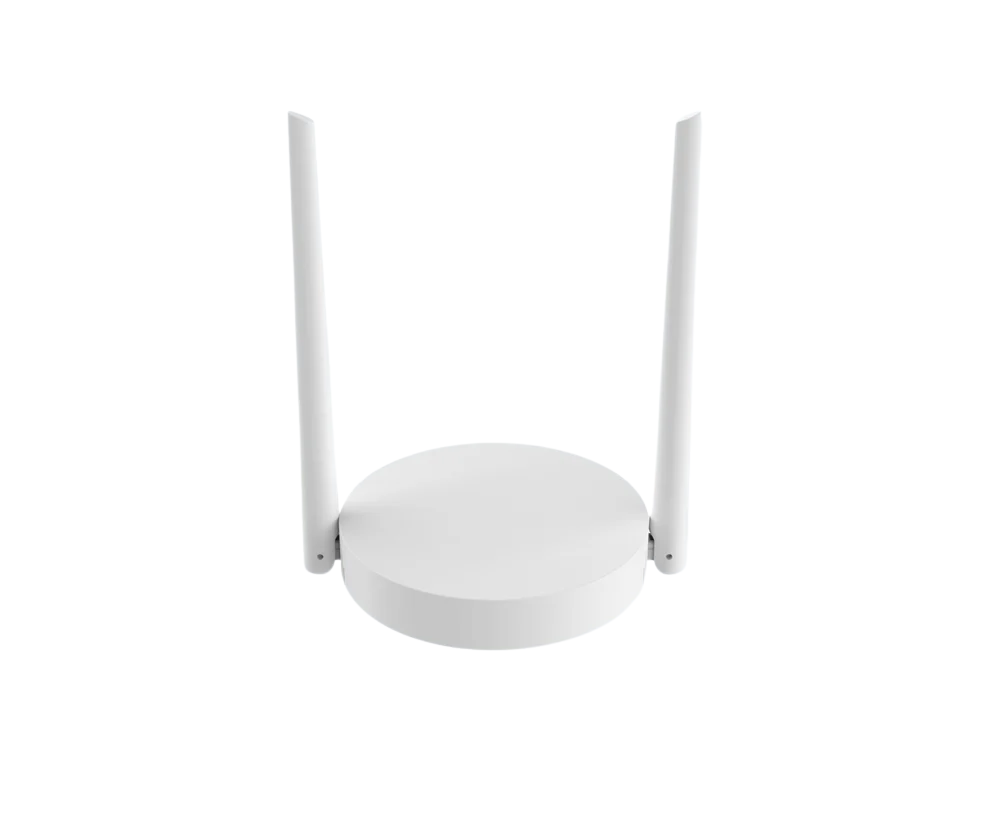

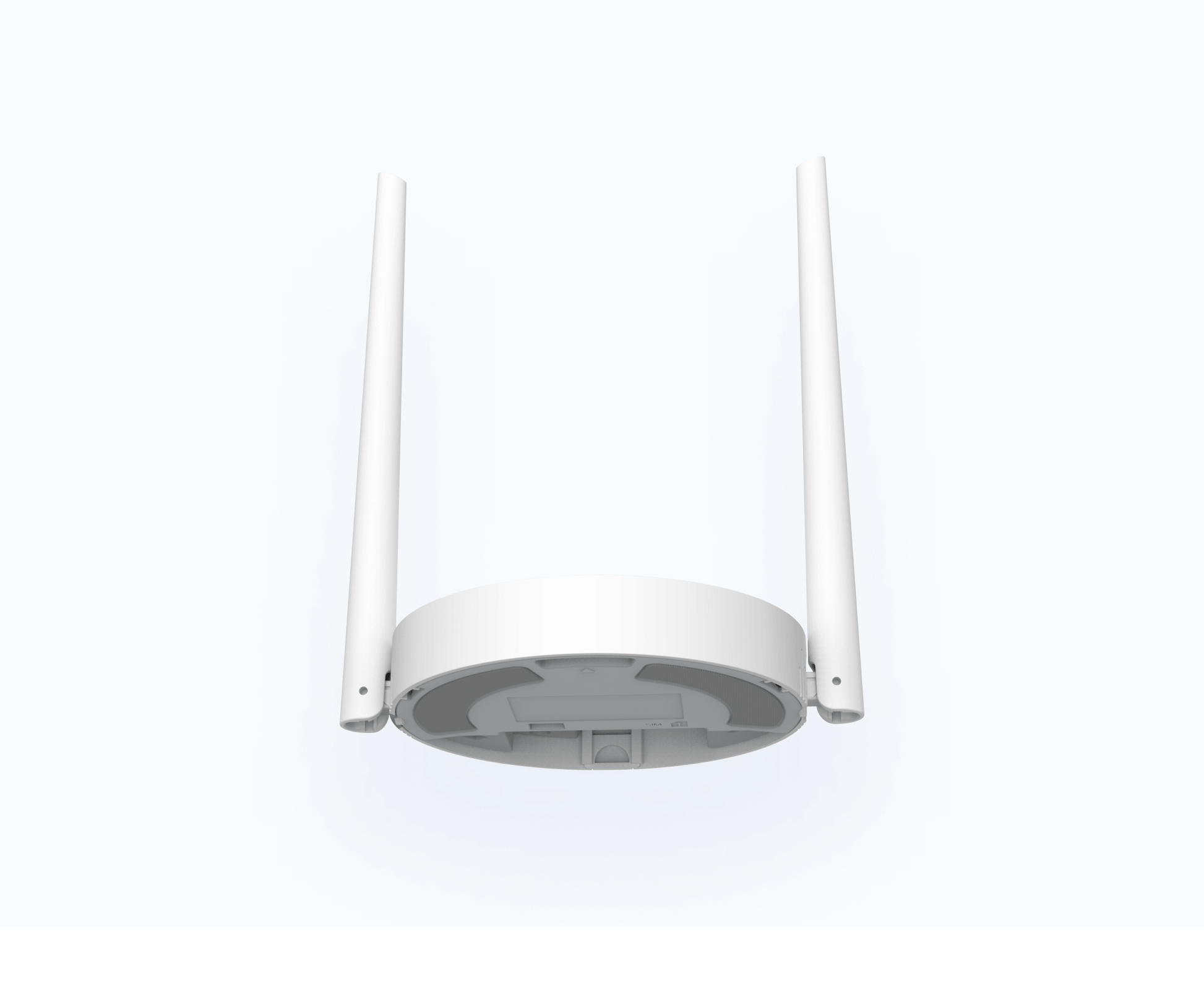

The Things Indoor Gateway Pro
The next-generation managed LoRaWAN® gateway.
Seamlessly integrated with The Things Stack, zero-touch provisioning, cellular data included and fully cloud managed for unparalleled LoRaWAN connectivity.
This product requires a subscription. Please see below for details.
Core features and benefits of The Things Indoor Gateway Pro
- Zero-Touch Provisioning Simplifies deployment and setup, enabling quick and easy installation without the need for technical expertise.
- Cellular Data included Roaming SIM card with data included, so all you need is power and you can get started.
-
Enhanced Device Management Includes features such as mTLS, FOTA, remote reboot, spectral scan, and smarter filtering capabilities.
-
Fully Cloud-Managed Offers comprehensive remote management capabilities, including firmware updates, device monitoring, and real-time insights.
- Future-Proof Technology Simplifies deployment and setup, enabling quick and easy installation without the need for technical expertise.
-
Integrated with The Things Stack Cloud, Sandbox, Enterprise* and Open Source*
Subscriptions
The Things Indoor Gateway Pro requires a subscription. Once gateways are ready to be shipped, you will receive an email from us to setup a subscription.
You can also manually do it via our subscriptions page once you receive your gateways.
Subscription prices can be found on our website.
Read more
For more details, see our website.
A getting started guide can be found in the documentation.
Technical specifications
| Feature | Details |
|---|---|
| LoRa® | |
| Antenna Connector | 1 x External Antenna |
| Concentrator | SX1302, 8 Channels (Half-duplex) |
| Frequency Band | EU868 / US915 |
| Sensitivity | -140 dBm Sensitivity at SF12 |
| Output Power | Up to 27 dBm |
| Ethernet Interface | |
| Port | 1 x RJ45 WAN Port |
| Physical Layer | 10/100 Base-T (IEEE 802.3) |
| Data Rate | 10/100 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Wi-Fi | |
| Standards | IEEE 802.11 b/g/n, 2.4 GHz |
| Cellular Interface | |
| Network | 4G LTE (Cat 1 bis) / GSM |
| Antenna | 1 x External Antenna |
| SIM Slot | 1 (Micro SIM-3FF) |
| Others | |
| Button | 1 x Reset Button |
| Console Port | 1 x USB 2.0 (Type-C) for Power Supply and Console |
| LED Indicators | 1 x Controller, 1 x The Things Stack |
| Power Supply and Consumption | |
| Power Input | 1. 5V via USB Type-C Port 2. 5~12V DC via 3.5mm 2-pin Terminal Block |
*Additional setup steps are necessary for these deployments. Please contact us at support@thethingsindustries.com.
